تفاصيل المنتج:
|
| Product Name: | Ultrasonic welding transducer | Frequency: | 35Khz |
|---|---|---|---|
| Ceramic diameter: | 25MM | Capacitance: | 4.2-4.5nf |
| Power: | 800 watt - 1000watt | Application: | welding machine |
| Amplitude: | 8 um | Ceramic disc: | 4 pcs |
| Material of booster: | Titanium material | Protective housing: | Aluminum and stainless steel optional |
| تسليط الضوء: | ultrasonic piezoelectric transducer,high frequency ultrasonic transducer,high frequency ultrasonic transducer |
||

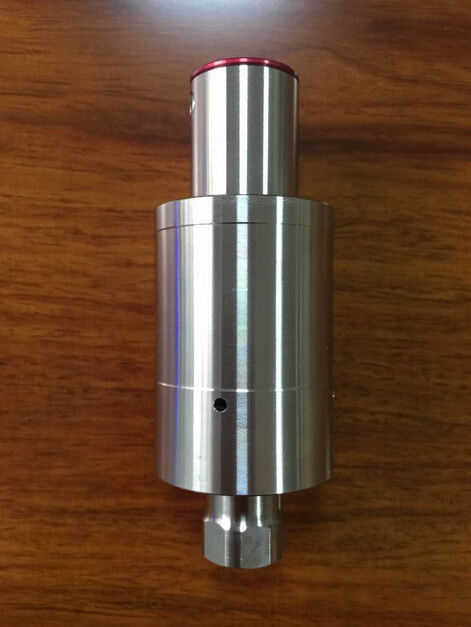

35khz Ultrasonic Welding Transducer , φ 25mm Telsonic Replacement transducer
Specification:
| Model | HSTL2535-4D |
| Frequency | 35 khz |
| Output power | 800-1000 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 4.2-4.5nf |
| Amplitude | 8 um |
| Application | welding machine |
Description:
The 35khz Telsonic replacement Ultrasonic Welding Transducer is applied to Telsonic type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
35khz Telsonic replacement Ultrasonic Welding Transducer
